Bead and Ball Bubble Tube

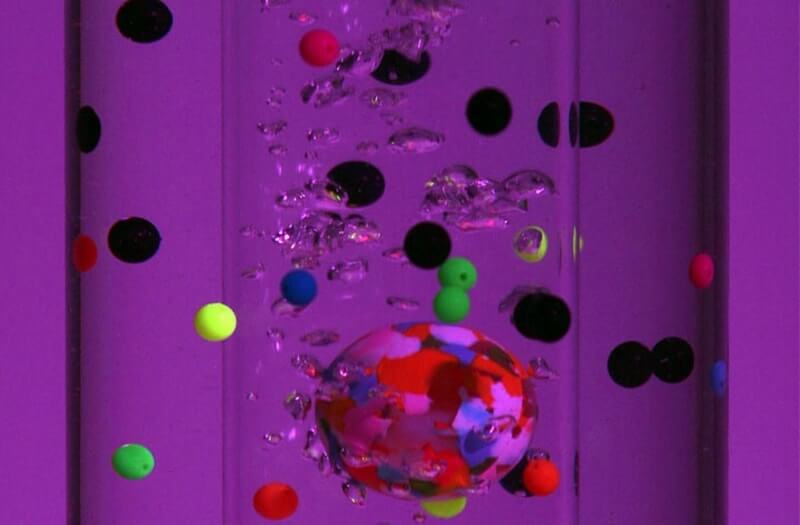

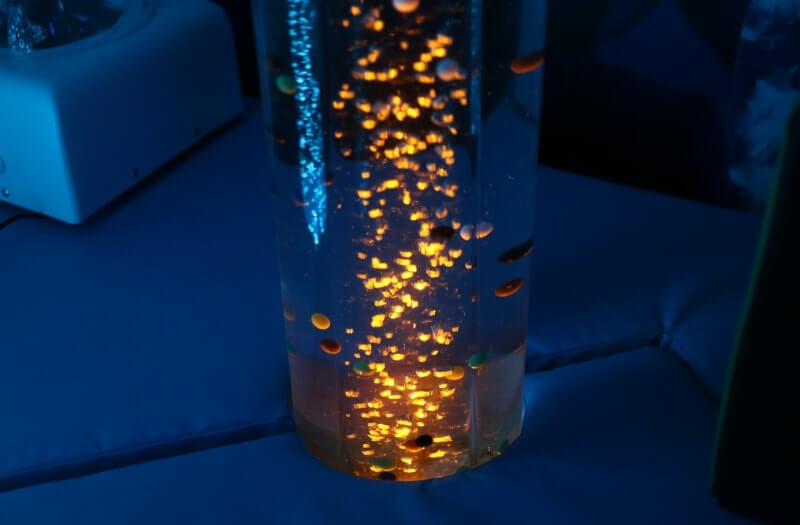

The Bead and Ball Bubble Tube propel multicoloured beads and balls through a water bubble tube. A fantastic addition to a sensory room as the patterned beads and balls gently shoot upwards and then cascade down through the water to repeat the cycle.

If you are looking to promote tracking skills to the user, then the Bead and Ball Bubble Tube is the perfect way to do just that. As you turn on the tube it immediately comes to life to attract attention, focus concentration and increase engagement in your sensory room.

The Bead and Ball Bubble Tube can be attached using a secure wall bracket or built into a soft plinth for the perfect sensory room feature. You can even add the bead and ball feature to your existing bubble tube so that it cn be used in any mode, just contact us today to find out how!

Instruction Manual
Contact us about this product

Good to Know...

  • Beads and balls included in the kit

  • Low voltage power supply

  • Easy to empty and fill for cleaning

  • Robust PVC tube provides strength against hard knocks

  • Available in 1m to 2m lengths

Quality Guranteed

The captivating Bead and Ball Bubble Tube is a popular version in our bubble tube range. The special added feature of floating beads and balls compliments the calming sensory nature of this product. LED lights add an extra dimension to the tube as it cycles through different colours including red, green, blue and yellow!

Everything is included in this kit and no additional set up is required (apart from adding the beads and balls!) making it an easily accessible bubble tube for those who want a striking feature in their sensory room.

Input Voltage: 12VAC
Power Consumption: 36W
Power Connector: 2.1mm jack
Ambient Temperature: 40°C maximum
Standard Lighting Colours: red, green, blue, yellow or white
Dimensions: Height 160mm + tube height, width 380mm, depth 380mm
Weight: 5kg approx. (without water)

How often do the bubble tubes need its water changing?

We recommend cleaning every 4 – 6 weeks. This may be shorter depending on the location if it in a dusty prone environment, for example.

How do you use your drain kit?

We’ve put together this handy video to show you just how to do this, please do get in touch if you have further questions:
https://www.youtube.com/watch?v=Dh649oaTskQ

How much BCB fluid do you need to put into the water? And how often?

BCB fluid should be added once a month. 20ml needs to be added for every metre of product length (for example a 2 metre Bubble Tube would require 40ml of BCB fluid). Further detailed instructions can be found on the back of the supplied BCB bottle.

What is the length of the wall bracket from the wall?

Maximum size of 50cm from the front of the acrylic tube to the wall.

Can you have bubble tubes cut to any height?

Yes, we do a standard size of 1M, 1.5M, 1.75M and 2M however if you require a specific height you need to keep in mind the 16cm required for the height of the base. For example, if your space was 200cm and you wanted to fit in a Bubble Tube at the height of 170cm exact. The height of the Bubble Tube itself would be 154cm you then add on the size of the base which is 16cm to give you an overall height of 170cm.

Does the acrylic tube come away from the base?

yes, there are 4 bolts that can be removed from the corner. This is only needs to be done if the base requires a new acrylic tube due to damage, refurbishment, maintenance etc.

How heavy is the bubble tube without water?

The bubble tube weighs approximately 5kg without water.

What diameters are the bubble tubes available in?

The most common diameter is 150mm, but we also provide 200mm diameter bubble tubes. Please state the diameter you require when placing an order.

How much water does each height of bubble tube take?

1M * 150mm – 17.67 Litres, 200mm – 31.42 Litres
1.5M * 150mm – 26.5 Litres, 200mm – 47.1 Litres
1.75M * 150mm – 30.93 Litres, 200mm – 54.98 Litres
2M * 150mm – 35.34 Litres, 200mm – 62.83 Litres
